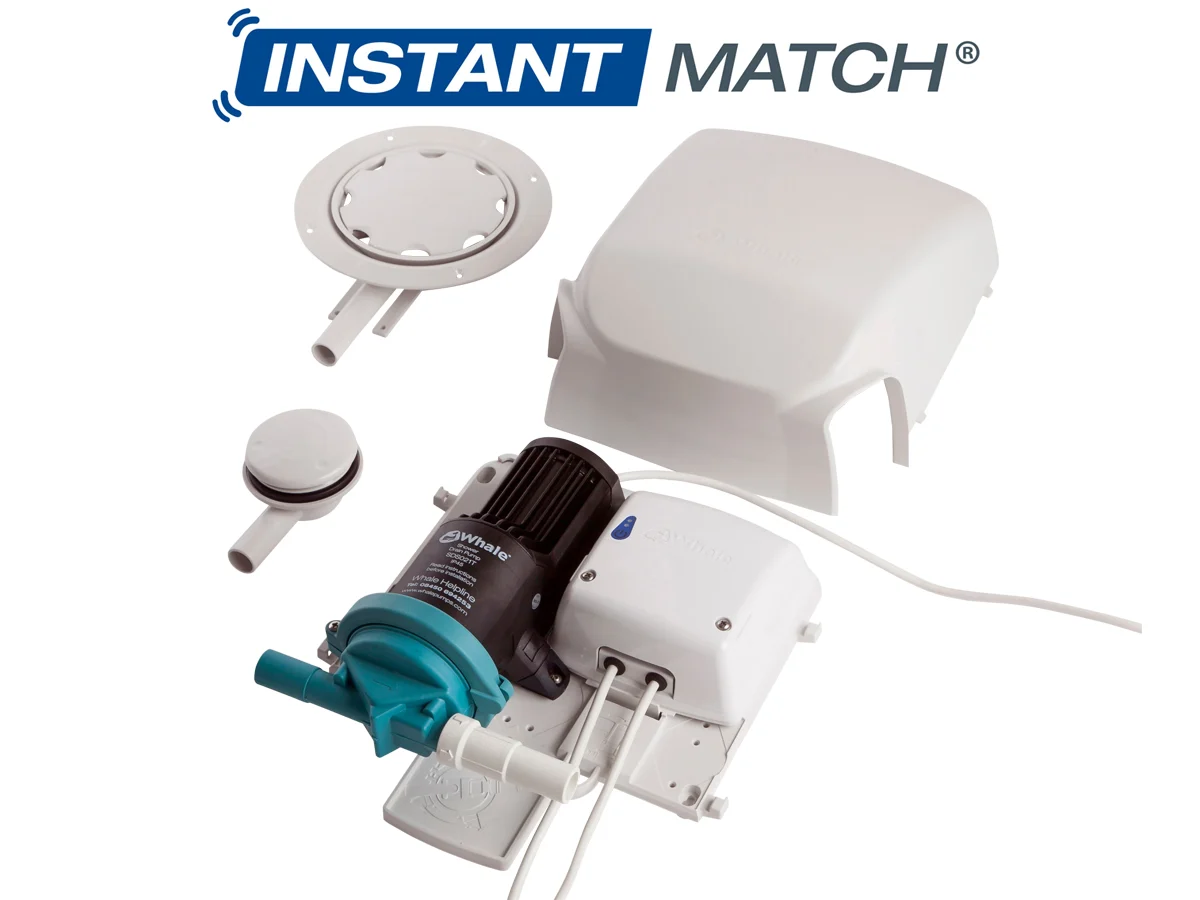

Whale Instant Match Bluetooth Wireless* and Hard Wired* Kit – Internal Shower Flow Sensor, SDP134T

SDP134T

To ensure minimal suction noise from the gulley, the Whale Instant Match pump with Bluetooth Wireless Technology employs a digital signal transmitted from the Mira Advance Flex Extra shower. This signal automatically adjusts the pump speed in accordance with the shower’s flow rate, creating an optimal and quiet drainage experience. With its plug-and-play operation, no setup is required, providing seamless functionality.

The Instant Match pump and the Mira Advance Flex Extra Wireless shower do not require a physical connection, thanks to their wireless control capability. In the event of a power failure to the pump, the shower automatically shuts off, ensuring safety and convenience.

Enjoy a tranquil and peaceful environment with the Instant Match kit, as it guarantees a quiet gulley. Pairing the pump with the shower is a simple process, requiring no complicated procedures.

Please note that a hard-wired connection option is also available for the Instant Match kit (refer to the details below).

Key Information

Features and Benefits

  • Digital control with Bluetooth wireless technology
  • Built in flood reduction system
  • Quick and secure pairing of pump with shower
  • Variable matched speed
  • Quiet gulley – Whale® Whisper wet floor gulley included

* Hard wired connection also available (see below)

This specific Instant Match kit, SDP134T, is compatible with the following showers:

  1. Mira Advance ATLW Flex Extra Wireless 9.0kW (J97P) 1.1643.311
  2. Mira Advance ATL Flex Extra 9.0kW (J97H) 1.1643.010 (for hard-wired connection only)

For the installation of any electric shower, it is possible to fit a Venturi Flow Sensor in-line by using Part No. SDS223T.

Instant Match Approvals

  • The Instant Match Kit is CE marked and complies with European standards for:
    – EMC (Electromagnetic Compatibility)
    – LVD (Low Voltage Directive)
  • Pumps and Transformers are rated against moisture and particle ingress
  • The Instant Match® Wireless radio signal is licensed for public use and meets radio standards R&TTE: ETSI EN300 328 V2.2.2
To minimise gulley suction noise the Whale Instant Match uses a digital signal sent from the Mira Advance Extra to automatically adjust the pump speed in relation to the flow rate of the shower.
